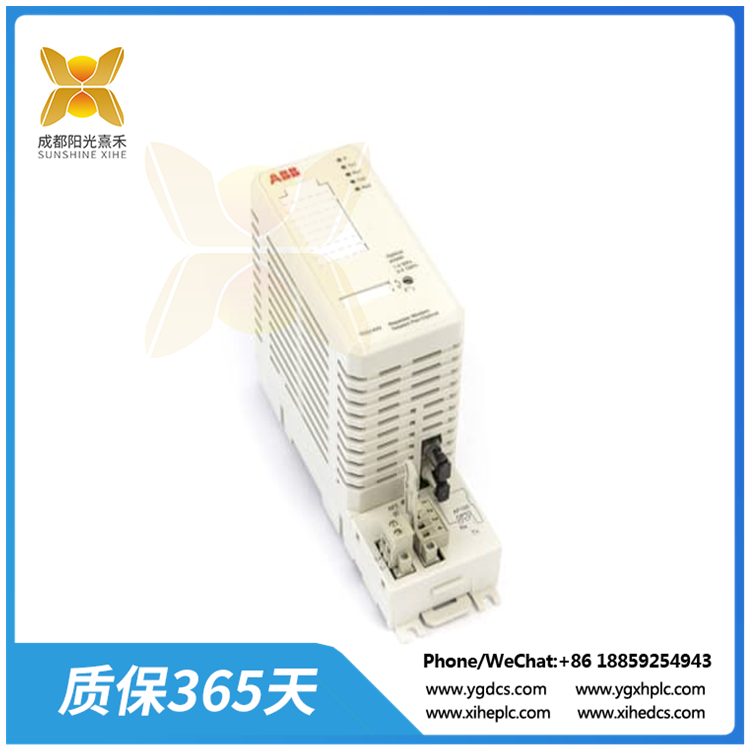

CI545V01 3BUP001191R1 |以太網子模塊 | CI857K01 3BSE018144R1 | CI858-1
型號：CI545V01 3BUP001191R1
類別：通信模塊
貨期：3-5天/周
成色：全新/非全新
質保：一年
應用場景：
局域網通信：用于建立和管理局域網，實現計算機之間的數據交換和共享。
物聯網連接：結合物聯網設備使用，實現設備之間的互聯和遠程監控。
工業自動化：CI545V01 3BUP001191R1 在工業自動化領域廣泛應用，用于實時數據采集和控制。
智能家居：實現智能家居設備之間的聯網和遠程控制。
技術細節：
以太網接口電路主要由MAC控制器和物理層接口(PHY)構成。
常用的物理層接口器件包括RTL8201、LXT971等，它們提供MII接口和7線制網絡接口。
布局布線原則：
CI545V01 3BUP001191R1 RJ45和變壓器之間的距離應盡可能縮短。
復位電路信號應靠近以太網轉換芯片，并遠離高頻信號和I/O端口。
時鐘電路應靠近以太網轉換芯片，遠離電路板邊緣和其他高頻信號源。
CI545V01 3BUP001191R1 | Ethernet submodule | CI857K01 3BSE018144R1 | CI858-1
Model: CI545V01 3BUP001191R1
Category: Communication module
Delivery time: 3-5 days/week
Finish: New/not new
Warranty: One year
Application scenario:
Local Area Network communication: It is used to establish and manage local area networks to realize data exchange and sharing between computers.
Iot connectivity: Combine the use of iot devices to achieve interconnection and remote monitoring between devices.
Industrial Automation: CI545V01 3BUP001191R1 is widely used in the field of industrial automation for real-time data acquisition and control.
Smart home: Realize networking and remote control between smart home devices.
Technical details:
Ethernet interface circuit is mainly composed of MAC controller and physical layer interface (PHY).
Common physical layer interface devices include RTL8201, LXT971, etc., which provide MII interface and 7-wire network interface.
Layout and wiring principles:
CI545V01 3BUP001191R1 The distance between the RJ45 and the transformer should be as short as possible.
The reset circuit signal should be close to the Ethernet converter chip and away from high frequency signals and I/O ports.
The clock circuit should be close to the Ethernet conversion chip and away from the edge of the board and other high frequency signal sources.
