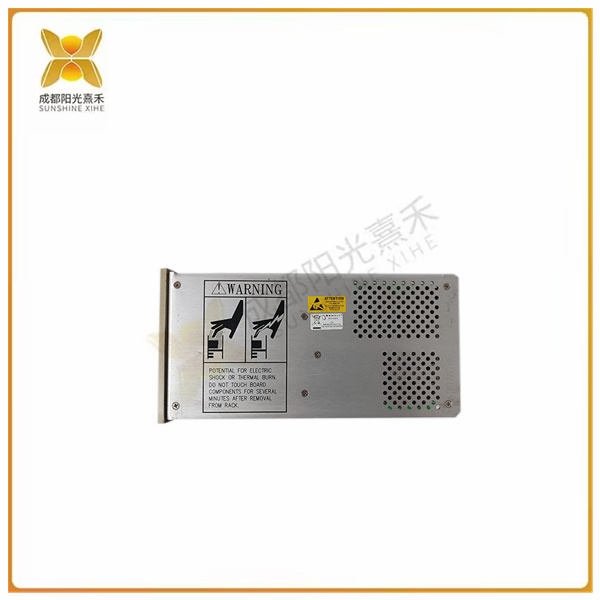

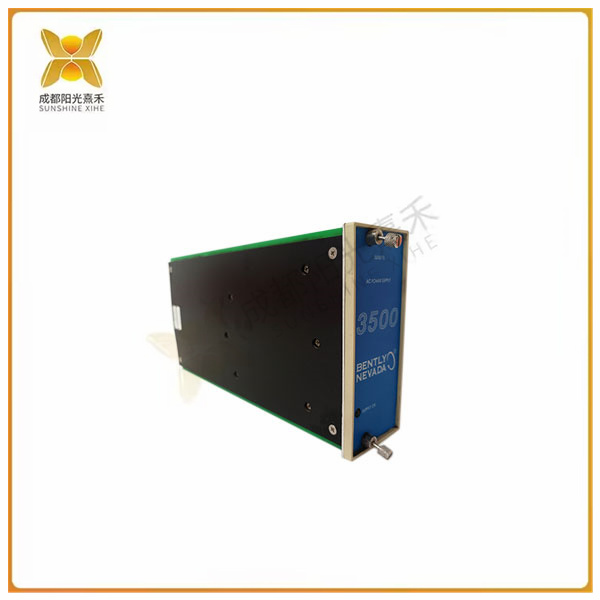

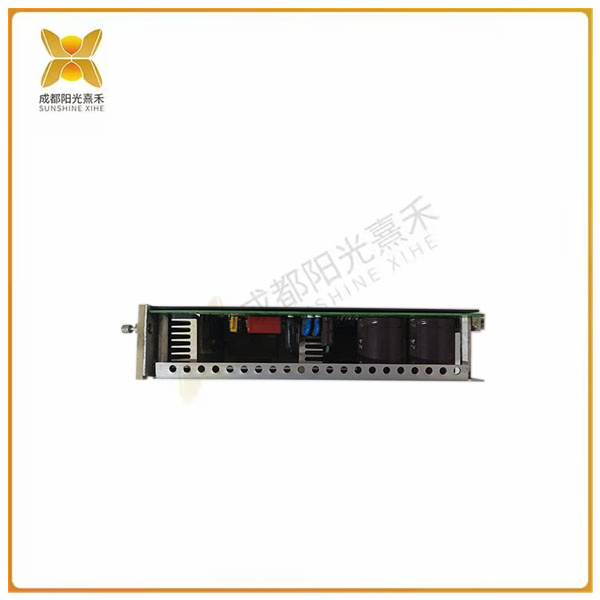

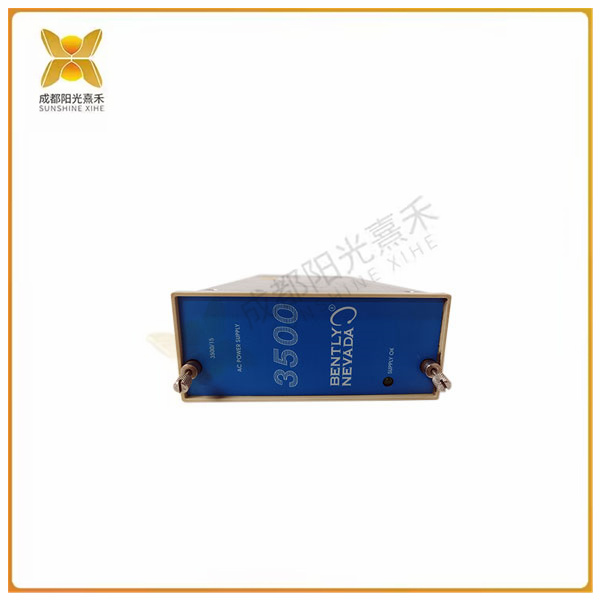

>>>>>型號:3500/15 交流和直流電源 為整個機架供電
【功能描述】
3500/15交流和直流電源是半高模塊,必須安裝在機架左側的指定插槽中。3500機架可以包含一個或兩個具有任意交流和直流組合的電源。任一電源都可以為整個機架供電。
3500/15的3500/15交流和直流電源可接受各種高或低輸入電壓,并可轉換為3500模塊所需的電壓。它們是機械保護系統的理想選擇,如果需要備份,可以使用一個或兩個電源。安裝兩個電源后,下方插槽容納主電源,上方插槽容納冗余電源。
3500/15電源可為3500提供交流或直流電源,包括瞬態數據接口(TDI)、單獨的監控模塊和輸入/輸出(I/O)模塊以及機械保護和條件中的所有連接傳感器監視系統。在不破壞機架的情況下,可以通過移除或插入任一電源模塊來“熱插拔”模塊。
3500/05系統機架包含所有3500監視器模塊和機架電源,允許模塊相互通信,使用System1軟件和電源根據需要為每個模塊分配電源。3500系統機架是本特利內華達汽輪機監測儀表(TSI)汽輪機套件的組成部分。憑借兩種尺寸(標準19英寸和14英寸)、三種靈活的安裝形式(機架、隔板和面板)以及用于危險區域的內部屏障選項,您可以定制3500/05系統機架以滿足您的需求。機架還具有防風雨外殼,可保護3500系統免受不利環境條件的影響。3500系統可用作SIL2級系統,這意味著它將提供本質安全。
3500/22M也稱為瞬態數據接口模塊(或TDI),是3500機架系統的核心。它允許配置3500機架參數,并用作System1機械狀態監測軟件平臺的網關。
>>>>>型號:3500/15 交流和直流電源 為整個機架供電
【英文介紹】
The 3500/15 AC and DC power supplies are half-height modules that must be installed in a designated slot on the left side of the rack. The 3500 rack can contain one or two power supplies with any combination of AC and DC. Either power supply can power the entire rack.
The 3500/15 AC and DC power supply of the 3500/15 accepts a variety of high or low input voltages and can be converted to the voltage required by the 3500 module. They are ideal for mechanical protection systems, and one or two power supplies can be used if backup is required. After the two power supplies are installed, the lower slot houses the primary power supply and the upper slot houses the redundant power supply.
The 3500/15 power supply provides AC or DC power to the 3500, including transient data interface (TDI), separate monitoring modules and input/output (I/O) modules, and all connected sensor monitoring systems in mechanical protection and conditions. Modules can be "hot-swappable" by removing or inserting either power module without damaging the rack.
The 3500/05 System rack contains all 3500 monitor modules and rack power supplies, allowing the modules to communicate with each other, using System1 software and power supplies to allocate power to each module as needed. The 3500 system rack is an integral part of the Bentley Nevada Turbine Monitoring Instrumentation (TSI) turbine suite. With two sizes (standard 19 "and 14"), three flexible mounting forms (racks, partitions and panels), and interior barrier options for hazardous areas, you can customize the 3500/05 system rack to meet your needs. The rack also features a weatherproof housing that protects the 3500 system from adverse environmental conditions. The 3500 system is available as a SIL2 level system, which means it will provide intrinsic security.
Also known as the Transient Data Interface Module (or TDI), the 3500/22M is the heart of the 3500 rack system. It allows the configuration of 3500 rack parameters and is used as a gateway for the System1 mechanical condition monitoring software platform.
