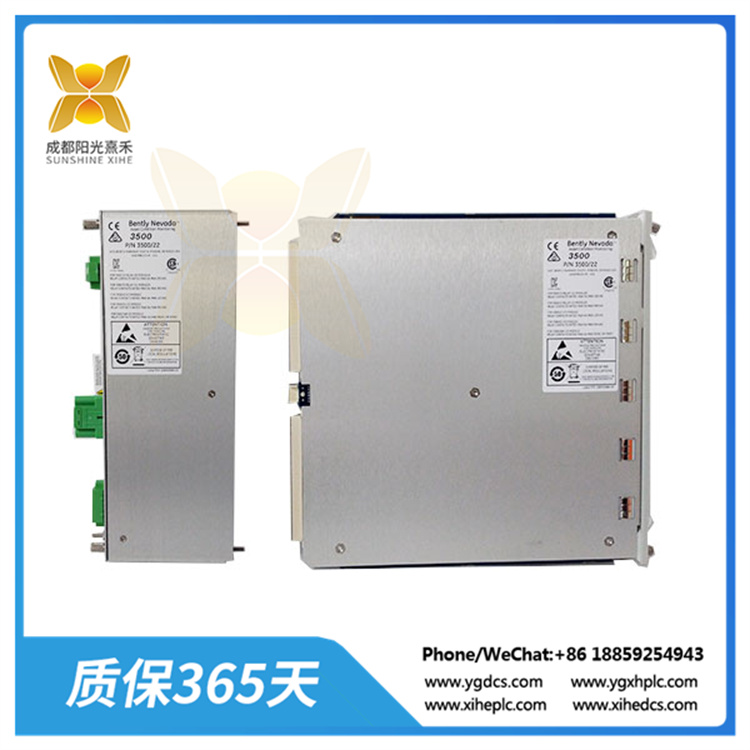

>>>型號:3500/22M 146031-01 瞬態數據接口(TDI)I/O模塊 用于工業自動化和控制系統
【功能描述】
3500/22M 146031-01 是一款瞬態數據接口(TDI)I/O模塊,它是3500監控系統和Bently Nevada的System 1機器管理軟件之間的關鍵接口。該模塊將3500/20框架接口模塊的功能
與通信處理器的數據收集功能相結合,實現了對穩態和瞬態波形數據的連續收集,并通過以太網鏈路將這些數據傳遞給主機軟件。
該模塊的主要特點如下:
數字化和集成化程度高:提高了監測系統的質量,確保數據的準確性和可靠性。
輸入信號濾波功能:輸入信號可以進行數字濾波,用戶可以根據需要選擇濾波器的時間范圍,從而過濾掉短于設定時間的脈沖,只保留重要的信號數據。
多種MTU類型支持:該模塊支持七種不同類型的MTU,可以根據具體的應用需求選擇合適的MTU類型。
內置CAN通訊功能:使得該模塊在工業自動化和控制系統中能夠?qū)崿F(xiàn)多泵合流,提高生產效率,降低運行噪音,并適應各種惡劣的工業環境。
在實際應用中,3500/22M 146031-01模塊通常與M系列顯示器(如3500/40M、3500/42M等)一起,在3500機架的RIM插槽中運行,實現對工業設備和系統的精確監測和控制。
由于其卓越的性能和穩定性,該模塊被廣泛應用于核電、電力、石油化工、冶金、能源、煤礦等行業的自動化和控制系統中。
>>>>型號:3500/22M 146031-01 瞬態數據接口(TDI)I/O模塊 用于工業自動化和控制系統
【英文介紹】
The 3500/22M 146031-01 is a Transient Data Interface (TDI) I/O module that serves as the key interface between the 3500 monitoring System and Bently Nevada's System 1 machine management software.
The module combines the functions of the 3500/20 frame interface module with the data collection function of the communication processor to achieve continuous collection of steady-state and transient
waveform data and pass these data to the host software over the Ethernet link.
The main features of this module are as follows:
High degree of digitalization and integration: the quality of the monitoring system is improved to ensure the accuracy and reliability of the data.
Input signal filtering function: The input signal can be digitally filtered, and the user can select the time range of the filter according to the need, so as to filter out the pulse shorter than the set time, and
only retain the important signal data.
Multiple MTU types: The module supports seven different types of Mtus. You can select the appropriate MTU type according to the specific application requirements.
Built-in CAN communication function: the module can realize multi-pump confluent in industrial automation and control system, improve production efficiency, reduce operating noise, and adapt to various
harsh industrial environments.
In practical applications, the 3500/22M 146031-01 module is usually run in the RIM slot of the 3500 rack together with the M-series displays (e.g. 3500/40M, 3500/42M, etc.) to achieve accurate monitoring
and control of industrial equipment and systems. Due to its excellent performance and stability, the module is widely used in the automation and control systems of nuclear power, electric power, petrochemical,
metallurgy, energy, coal and other industries.
