>>>>>型號:369-HI-R-M-0-0-0-E 通過跳閘前警報和過扭矩校正等功能

【功能描述】

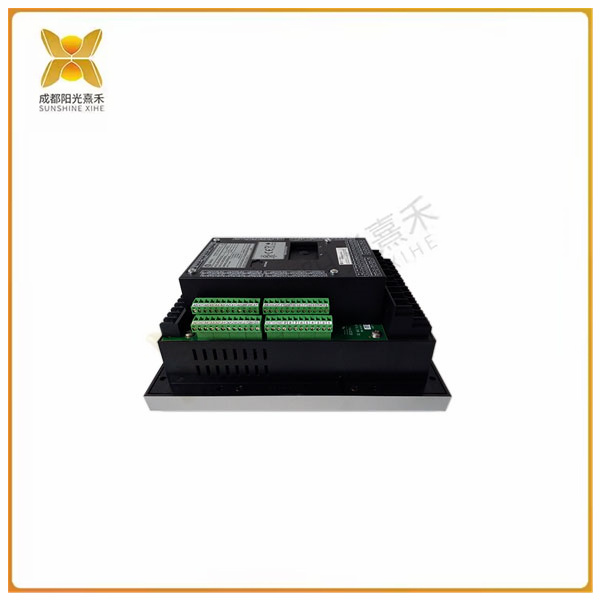

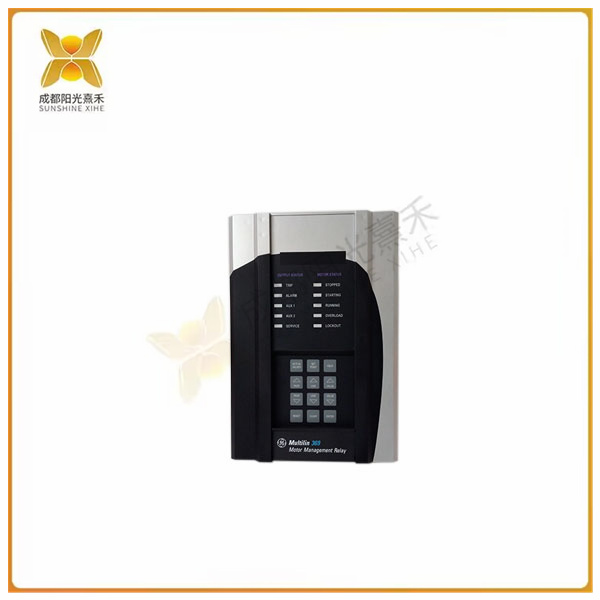

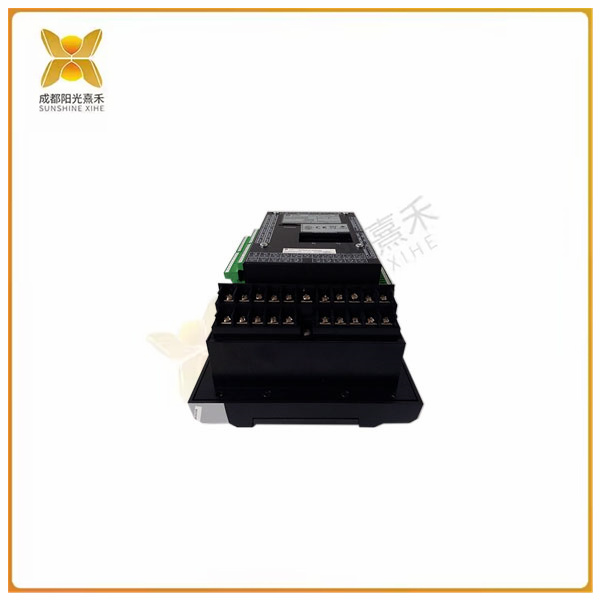

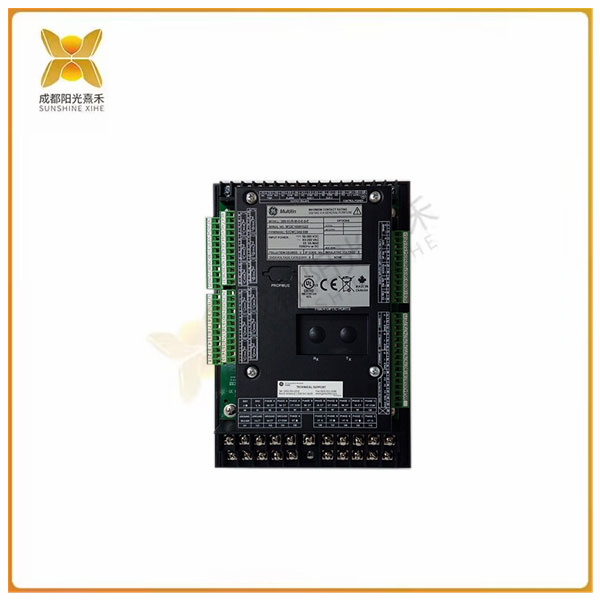

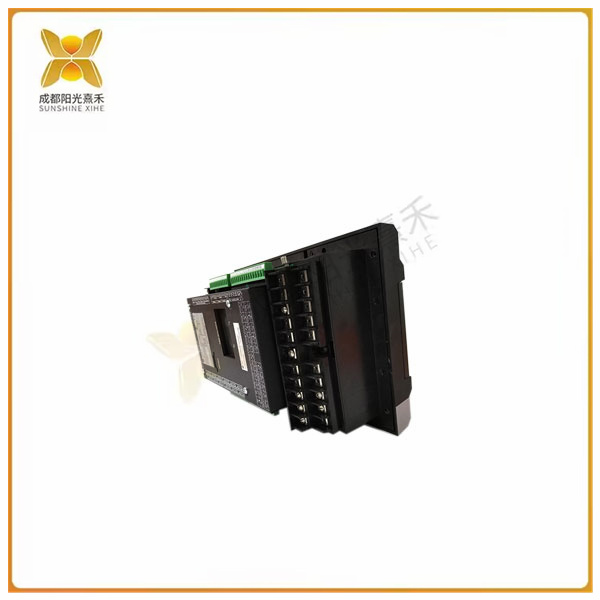

369-HI-R-M-0-0-0-E 是通用電氣 Multilin 369 系列電機管理繼電器的一部分。這款 369 型號及其升級和配件即將停產，并處于最后購買狀態。一些升級，例如作為防腐蝕、高溫、灰塵和潮濕保護層的保形涂層，在產品線停產后仍然可以添加。

Multilin 的 369-HI-R-M-0-0-0-E 旨在保護和控制電機及其隨附組件。369 通過各種內置功能實現這一點，其中一些功能包括：

計量：369 可以監控電壓、瓦特、頻率和能量等數量，根據生成的值數據生成保護功能。

活動記錄：在跳閘后，369 能夠立即報告跳閘原因，以及跳閘時的溫度和數據值，使用戶能夠分析系統中出現的問題。

出行前警報：當由接地故障、機械堵塞、RTD 過熱等原因引起時，369 可以在跳閘前通知用戶。

電機健康報告：繼電器可以使用學習到的信息和系統跳閘的歷史記錄來確定何時何地可能需要維護。

振蕩圖：跳閘時觸發三個波形記錄，并捕獲 16 個數據周期。在此過程中，都會捕獲相電流和接地電流以及觸點輸入狀態。

369-HI-R-M-0-0-0-E 繼電器生成的大量數據和采用的保護功能有助于減少故障排除時間并延長系統壽命，使其成為中型電機的絕佳選擇。

369-HI-R-M-0-0-0-E GE Multilin 電機管理繼電器有哪些順序特征？

369-HI-R-M-0-0-0-E 具有一些單獨的訂購規格，將 369-HI-R-M-0-0-0-E 與 369 Multilin 系列中的其他數字電機管理繼電器區分開來。所提供的訂購功能由部件號 369-HI-R-M-0-0-0-E 的數字代碼表示。首先，369-HI-R-M-0-0-0-E 是一款高控制功率繼電器 （HI）。該控制功率范圍為 50-300 VDC 和 60 至 264 VAC 控制功率。此 369-HI-R-M-0-0-0-E 具有數字 （R），表示可選的 12 個 RTD 輸入已以內置方式包含在內。369-HI-R-M-0-0-0-E 還包含可選的計量套件 （M）。在接下來的三個數字選項中，父代碼中有一個零，這表示尚未包含這些可選的排序功能。在最后一個數字代碼處有一個 E。此包含的功能表明設備上具有增強的診斷功能和增強的面板。

Multilin 369-HI-R-M-0-0-0-E GE 是否具有用作電機管理繼電器的惡劣環境選項？

369-HI-R-M-0-0-0-E GE 具有許多附加功能，如部件號所示。但是，“H”選項或惡劣環境選項不存在。在本例中，如果 369-HI-R-M-0-0-0-E GE Multilin 存在此順序特征，則在第六個位置有一個零，該位置將找到 H。

 >>>>>型號:369-HI-R-M-0-0-0-E 通過跳閘前警報和過扭矩校正等功能

【英文介紹】

　　The 369-HI-R-M-0-0-0-E is part of the General Electric Multilin 369 series of motor management relays.The 369 model and its upgrades and accessories are about to be discontinued and are in final purchase condition.Some upgrades,such as conformal coatings that act as protection against corrosion,heat,dust and moisture,can still be added after the product line is discontinued.

　　Multilin's 369-HI-R-M-0-0-0-E is designed to protect and control the motor and its accompanying components.369 does this through a variety of built-in features,some of which include:

　　Metering:The 369 can monitor quantities such as voltage,watt,frequency and energy,and generate protection functions based on the generated value data.

　　Activity logging:Immediately after tripping,the 369 can report the cause of tripping,as well as the temperature and data values at the time of tripping,enabling users to analyze problems occurring in the system.

　　Pre-trip alert:When caused by ground failure,mechanical blockage,RTD overheating,etc.,the 369 can notify the user before tripping.

　　Motor health reports:Relays can use learned information and a history of system trips to determine when and where maintenance may be needed.

　　Oscillogram:Three waveform records are triggered when tripping and 16 data cycles are captured.During this process,both the phase and ground currents and the contact input state are captured.

　　The large amount of data generated by the 369-HI-R-M-0-0-0-E relay and the protection features employed help reduce troubleshooting time and extend system life,making it an excellent choice for medium-sized motors.

　　369-HI-R-M-0-0-0-E What are the sequence characteristics of GE Multilin motor management relays?

　　The 369-HI-R-M-0-0-0-E has a number of separate ordering specifications that distinguish the 369-HI-R-M-0-0-0-E from other digital motor management relays in the 369 Multilin series.The ordering function provided is represented by the numerical code of the part number 369-HI-R-M-0-0-0-E.First,the 369-HI-R-M-0-0-0-E is a high control power relay(HI).The control power range is 50-300 VDC and 60 to 264 VAC control power.This 369-hi-R-M-0-0-0-0-E has a number(R)indicating that the optional 12 RTD inputs are included built-in.The 369-HI-R-M-0-0-0-E also includes an optional metering kit(M).In the next three numeric options,there is a zero in the parent code,which indicates that these optional sorting features are not yet included.There's an E at the last digit code.This included functionality indicates enhanced diagnostic capabilities and enhanced panels on the device.

　　Multilin 369-HI-R-M-0-0-0-E Does GE have harsh environment options for use as a motor management relay?
