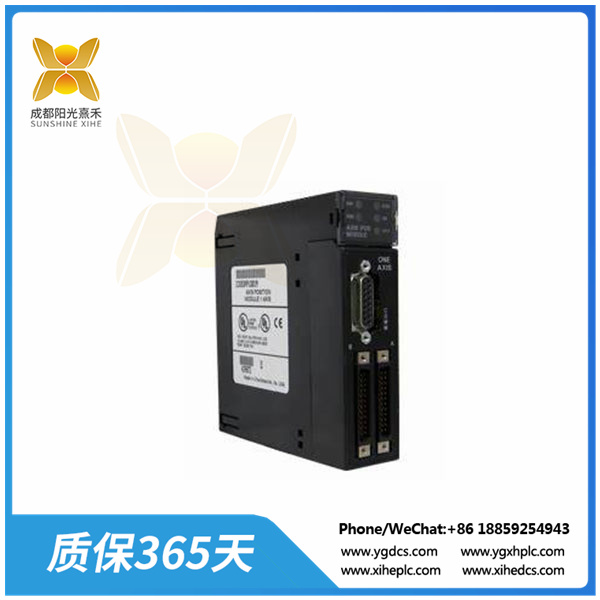

IC693PBM200 | 主模塊 | 90-30 系列控制器
產品參數:
型號：IC693PBM200
一輸入電壓:24vdc
一輸出電壓:5vdc
-通信接口:RS485
一工作溫度:-40℃~ 70°C
尺寸:10cm x10cm x2cm
IC693BPM200 是一個 Profibus 主模塊，是 90-30 系列控制器平臺的一部分，該平臺以前來自 GE Fanuc，現在被 Emerson Automation 收購。該模塊是支持Profibus通信協議的可選通信模塊。它帶有一 (1) 個 Profibus Master 端口，支持以菊花鏈拓?fù)湫问脚c Profibus 網絡通信，另一個 RS232 服務端口可用于下載配置和固件升級。
IC693BPM200是一個單插槽模塊，可安裝到 CPU 底板、擴展或遠程底板。它支持多達 125 個 Profibus DP 從站的通信，從而實現遠程 I/O 架構并與其他設備(如網關、HMI、SCADA 和其他設備)進行通信。對于遠程 I/O 功能，每個 Profibus 從站能夠接收 244 字節的輸入數據并發送 244 字節的輸出數據。它支持同步和凍結配置，并可配置為從 9600 Kbaud 到 12MBaud 的所有 Profibus 標準傳輸速率。它遵循菊花鏈拓?fù)浣Y(jié)構，因?yàn)樵搮f(xié)議源自 RS485 電氣標準，其兩端(特別是網絡的節點 1 和最后一個節點)通過終端電阻閉合。它還帶有 SYS 和 COM 狀態 LED，用于描述活動通信和設備操作。
Product parameters:
Model: IC693PBM200
One input voltage :24vdc
One output voltage :5vdc
- Communication port :RS485
A working temperature :-40℃~ 70°C
Size :10cm x10cm x2cm
The IC693BPM200 is a Profibus master module that is part of the 90-30 series controller platform, formerly from GE Fanuc and now acquired by Emerson Automation. This module is an optional communication module that supports Profibus communication protocol. It comes with one (1) Profibus Master port that supports communication with the Profibus network in a Daisy chain topology, and another RS232 service port that can be used to download configurations and firmware upgrades.
The IC693BPM200 is a single-slot module that can be installed on CPU backboards, extensions, or remote backboards. It supports communication of up to 125 Profibus DP slaves, enabling remote I/O architectures and communication with other devices such as gateways, Hmis, SCADA, and others. For remote I/O functions, each Profibus slave station is capable of receiving 244 bytes of input data and sending 244 bytes of output data. It supports sync and freeze configurations and can be configured for all Profibus standard transfer rates from 9600 Kbaud to 12MBaud. It follows a Daisy chain topology, as the protocol is derived from the RS485 electrical standard, and its two ends (especially node 1 and the last node of the network) are closed by terminal resistors. It also comes with SYS and COM status leds for describing active communication and device operation.
