【功能描述】

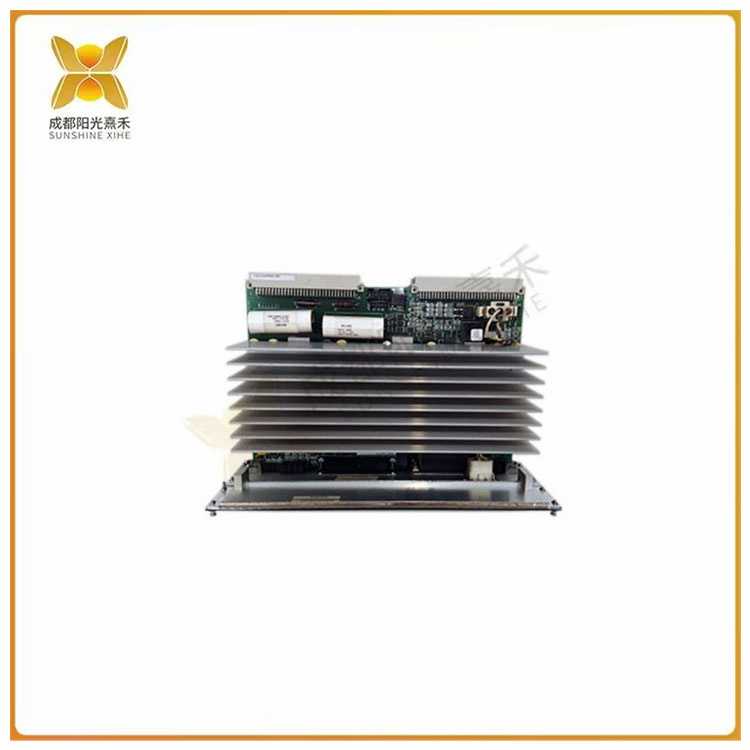

IS215VPROH1BD是一種印刷電路板，設計為GE的Mark VI渦輪機控制系統中的一個組件。該系統用于控制和管理各種尺寸和復雜程度的工業燃?xì)廨啓C(jī)和蒸汽輪機。

該IS215VPROH1BD是AX Control庫存中用于Mark VI的多個應用控制層模塊之一。該板使用基于微處理器的控制器和通信網絡（如ISBus和以太網）來執行Mark VI的多項任務。這款多功能板可與EX2100勵磁器或標準創新系列驅動器一起使用。

IS215VPROH1BD前面有一個連接的面板。這包括兩個ISBus端口，每個端口有兩個LED指示燈（一個黃色和一個綠色）、一個復位開關、兩個COM端口、八個狀態LED、一個以太網端口和四個附加LED指示燈。面板還包括兩個固定螺釘，可幫助用戶在安裝模塊后將模塊牢固地鎖定到位。

IS215VPROH1BD表面有三個可以調節的跳線開關。該板有一個p1連接器，僅在測試或開發期間使用。IS215VPROH1BD板設計用于與GE的Control System Toolbox軟件配合使用。這可用于更改和配置IS215VPROH1BD上的運行時設置。操作系統升級是通過串行加載程序?qū)崿F(xiàn)的。

 >>>>>型號:IS215VPROH1BD 印刷電路板 工業燃?xì)廨啓C(jī)

【英文介紹】

The IS215UCVEH2AE is a component of the General Electric Mark VI Speedtronic control system. The board is used as a VME control card. The VME bracket is the standard Mark VI bracket and can be used as a 13 - or 21-slot rack.

IS215UCVEH2AE is a rectangular board with a front panel. Both the top and bottom of the panel have a set screw to help hold the board in place after mounting it into the rack system. The front panel includes one Ethernet port, two COM ports, and one LAN port. It also has an opening for a sandwich card.

The board itself consists of a vertical pin connector within the board body and a right Angle pin connector along the edge of the board. In addition, the board has multiple integrated circuits, resistors, capacitors, chokes, and other components. In addition, there is a small circuit board mounted at an Angle in the center of the circuit board, and the radiator cap is located more than half of the circuit board.
