>>>>>型號:8406-113 控制套件負載分配 顯示屏界面
【功能描述】
8406-113 型屬于伍德沃德 EGCP-3 發動機發電機控制套件負載分配 （LS） 型號系列。該基于微處理器的單元設計用于與其他 LS 單元一起使用或與其他 LS 單元一起使用。8406-113 的額定輸入電壓為 18-32 V dc，額定工作溫度范圍為 –20 至 +70 °C。
該LS型號具有鍵盤和顯示屏界面，其中包括兩個背光LCD屏幕，使用戶能夠同時監控和調整相關參數。這些屏幕顯示八行狀態信息，可選擇四行配置或報警日志信息。
使用前，必須通過首次啟動菜單配置 8406-113;在引擎運行時，無法編輯這些項目。對于標準操作，8406-113 配置點可從前面板顯示屏獲得。其他配置點（以及標準配置點）可通過 ServLink 通信串行鏈路從 Watch Window 軟件訪問。
該控制單元有 9 個狀態菜單，便于監控和故障排除。這些菜單是系統狀態、發動機狀態、發電機狀態、同步器狀態、KW 負載狀態、PF/KVAR 狀態、I/O 狀態、序列狀態和 ATS 狀態（請注意：LS 型號沒有任何轉換開關功能。如果設備設置了連接到電源的本地系統總線，并且需要 MC 設備來執行 ATS 功能）。
>>>>>型號:8406-113 控制套件負載分配 顯示屏界面
【英文介紹】
The Type 8406-113 belongs to the Woodward EGCP-3 Engine Generator Control Suite Load Distribution (LS) model family. The microprocessor-based unit is designed to be used with or in conjunction with other LS units. The 8406-113 has a rated input voltage of 18-32 V dc and a rated operating temperature range of -20 to +70 °C.

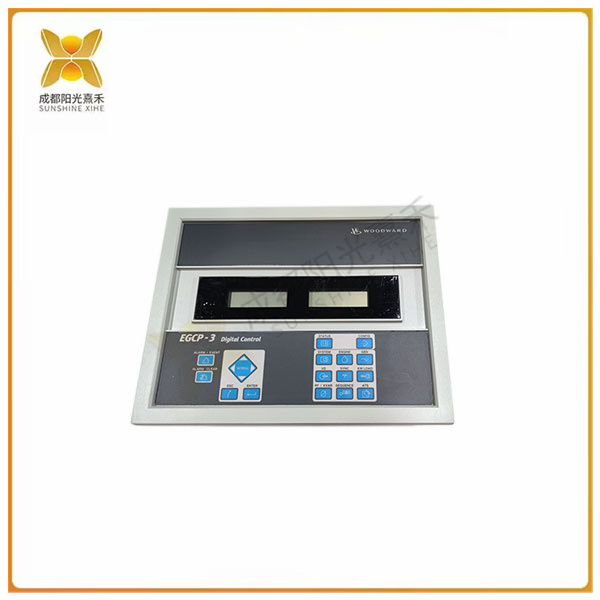

The LS model features a keyboard and display interface, including two backlit LCD screens that enable users to monitor and adjust relevant parameters simultaneously. These screens display eight lines of status information, with a choice of four lines of configuration or alarm log information.
Before use, you must configure 8406-113 through the first startup menu; These items cannot be edited while the engine is running. For standard operation, the 8406-113 configuration points are available from the front panel display. Other configuration points (as well as standard configuration points) are accessible from the Watch Window software via the ServLink communication serial link.
The control unit has 9 status menus for easy monitoring and troubleshooting. These menus are System status, engine status, generator status, synchronizer status, KW load status, PF/KVAR status, I/O status, sequence status, and ATS status (Please note: LS models do not have any transfer switch function. If the device is configured with a local system bus connected to the power supply and an MC device is required to perform the ATS function).
