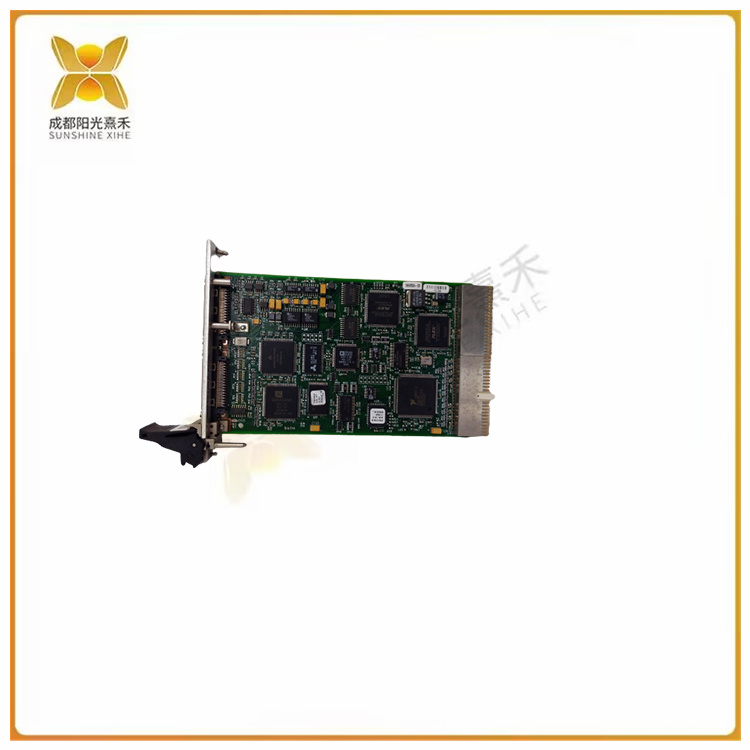

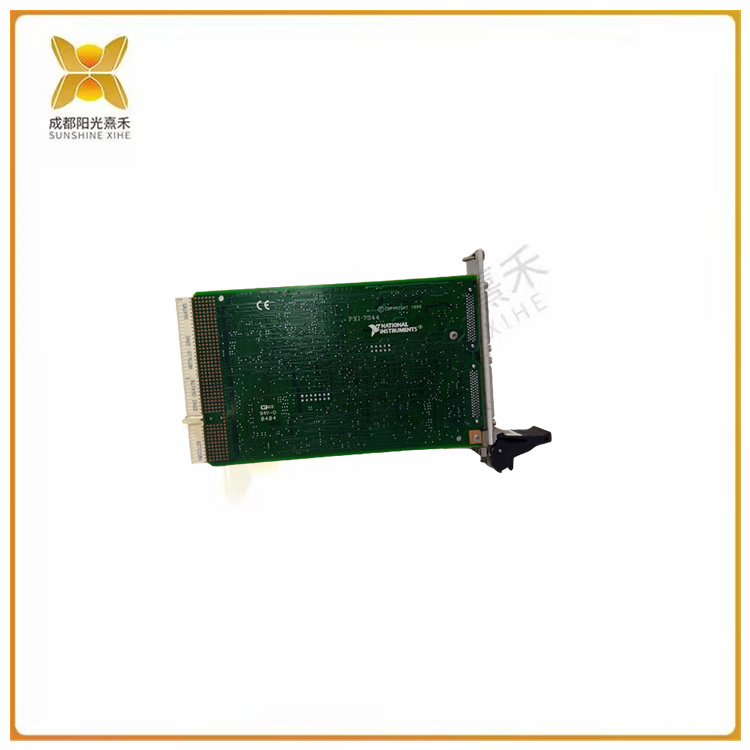

>>>>>型號:PXI-7344 運動控制器模塊  復雜運動應用

【功能描述】

4軸，步進/伺服PXI運動控制器模塊—PXI?7344同時適用于簡單和復雜運動應用。 它包括兩個處理器和一個實時板載系統，并具有多軸插值功能。 PXI?7344為嵌入式實時運動操作或以主機為中心的編程環境提供了混合運動軌跡控制和完全協調的圓形、線性、點對點、齒輪和矢量空間控制。

NI為更復雜的移動提供輪廓控制功能。 板載CPU采用嵌入式實時操作系統，可進行基于事件的多任務控制。 利用這種方法，多個運動控制程序和過程可以獨立于主機PC，在控制器上同步運行，并且無需外部編程交互，除非主機程序或用戶配置主動啟動交互。

PXI運動控制模塊是一種基于PXI總線的運動控制器，專門用于自動化設備和機器人的運動控制。該模塊具有高速、高精度的特點，支持多種運動控制算法，可以同時控制多個軸的運動。此外，該模塊還具有豐富的接口和通訊功能，可以與其他設備或控制系統進行集成。

 >>>>>型號:PXI-7344 運動控制器模塊  復雜運動應用

【英文介紹】

4-axis, stepper/servo PXI Motion Controller module - PXI?7344 is suitable for both simple and complex motion applications. It includes two processors and a real-time onboard system with multi-axis interpolation. The PXI?7344 provides hybrid motion trajectory control and fully coordinated circular, linear, point-to-point, gear and vector space control for embedded real-time motion operations or host-centric programming environments.

NI provides contour control for more complex movements. The on-board CPU uses an embedded real-time operating system to implement event-based multi-task control. With this approach, multiple motion control programs and processes can run synchronously on the controller independently of the host PC and without external programming interaction unless the host program or user configuration actively initiates the interaction.

PXI motion control module is a motion controller based on PXI bus, which is specially used for the motion control of automation equipment and robots. The module has the characteristics of high speed and high precision, supports a variety of motion control algorithms, and can control the motion of multiple axes simultaneously. In addition, the module also has rich interface and communication functions, which can be integrated with other devices or control systems.

>>>>>型號:PXI-7344 運動控制器模塊  復雜運動應用
