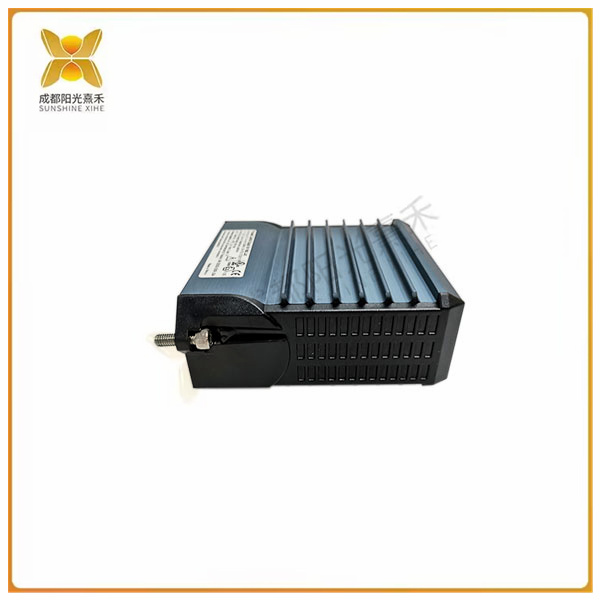

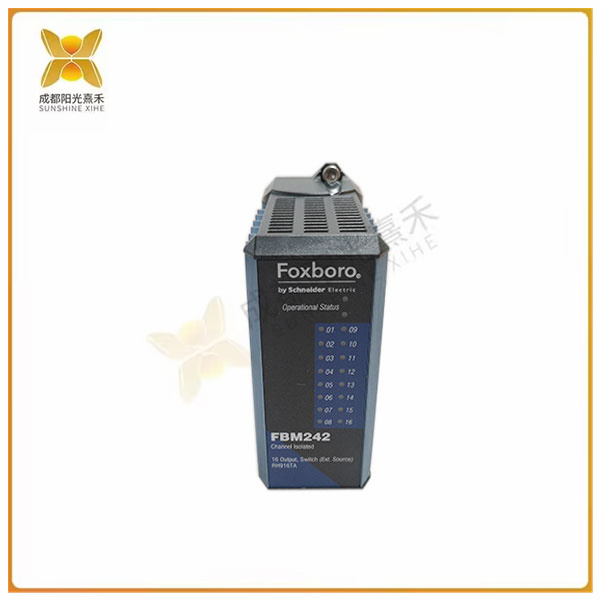

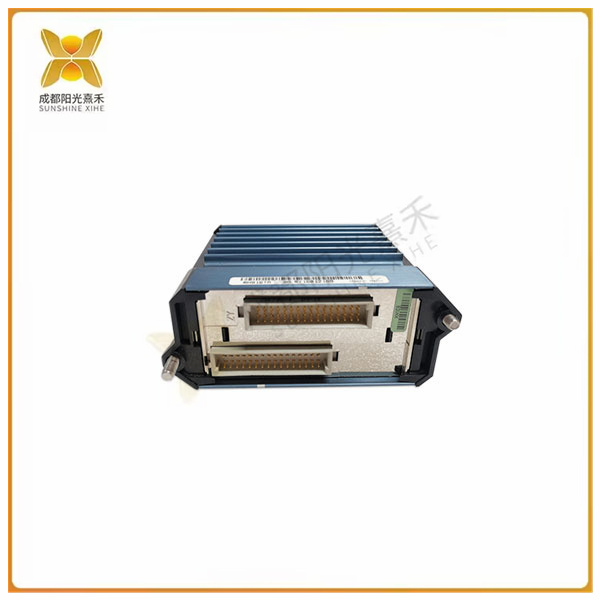

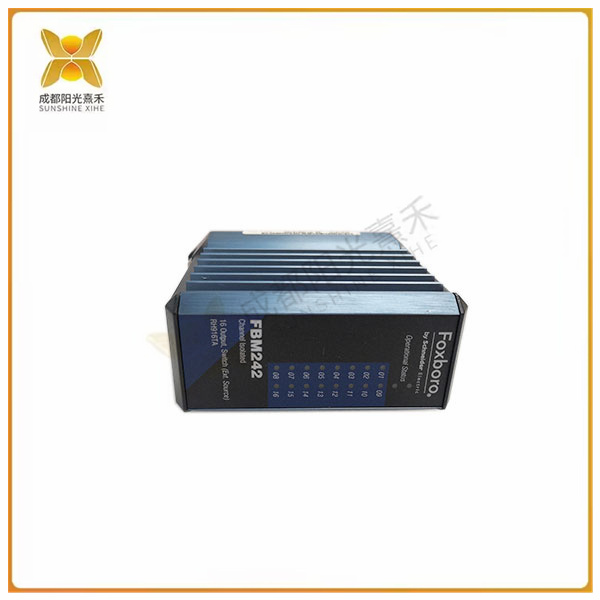

>>>>>型號:FBM242 外部源離散輸出接口模塊
【功能描述】
Foxboro（by Schneider Electric）
產品編號型號：FBM242
產品類型：外部源，離散輸出接口模塊
特點：16個離散輸出，支持15至60 V直流電壓、120 V交流/125 V直流、240 V交流電壓下的離散輸出信號，每個輸入和輸出都是電隔離的，與外部激勵一起使用時組隔離，緊湊、堅固的設計，適用于G3級（惡劣）環境中的外殼，執行離散I/O或梯形邏輯程序，具有以下可配置選項：輸入濾波時間、故障安全配置、故障、安全回退以及持續或瞬時輸出
輸入電壓范圍（冗余）：24 V dc+5%，-10%
功耗（最大）：3 W（最大），24 V直流時
散熱：24 V dc時為6.5 W（最大）（所有輸出均為1.5 A）
校準要求：模塊和終端組件不需要校準。
溫度模塊：-20至+70°C（-4至+158°F）
端接組件PVC：-20至+50°C（-4至+122°F）
相對濕度：5至95%（非冷凝）
尺寸（長x寬x高）：10.4厘米x 4.5厘米x 11.4厘米
緊湊型FBM242離散輸出接口模塊包含16個離散輸出通道
由客戶選擇的外部電源供電。
特性
緊湊型FBM242模塊的主要特點是:
?16個離散輸出
?支持電壓下的離散輸出信號:
?15~60v直流
?120v ac/125v dc
?240v ac
?每個輸出均電隔離;集團
與外部激勵一起使用時是隔離的
?緊湊，堅固的設計適用于外殼
G3(惡劣)環境
?執行離散I/O或梯形邏輯
程序，具有以下可配置選項:
輸入過濾時間，故障安全配置，故障安全回退，持續或瞬間
輸出
?各種終止程序集(TAs)
包含:
?限流裝置
?融合
?繼電器輸出與外部電源，
熔斷，配電
?固態輸出
?冗余配電
>>>>>型號:FBM242 外部源離散輸出接口模塊
【英文介紹】
Foxboro (by Schneider Electric)
Product number Model: FBM242
Product Type: External source, discrete output interface module
Features: 16 discrete outputs support discrete output signals at 15 to 60 V DC, 120 V AC /125 V DC, 240 V AC voltages, each input and output is electrically isolated, group isolated when used with external excitation, compact, robust design for G3 class (harsh) environment enclosures, Execute discrete I/O or ladder logic programs with the following configurable options: input filter time, fail-safe configuration, failure, safe rollback, and continuous or instantaneous output
Input voltage range (redundancy) : 24 V dc+5%, -10%
Power consumption (Max) : 3 W (Max), 24 V DC
Heat dissipation: 6.5W (Max) at 24V dc (1.5A for all outputs)
Calibration requirements: Modules and terminal components do not require calibration.
Temperature module: -20 to +70°C (-4 to +158°F)
End assembly PVC: -20 to +50°C (-4 to +122°F)
Relative humidity: 5 to 95% (non-condensing)
Dimensions (L x W x H) : 10.4 cm x 4.5 cm x 11.4 cm
The compact FBM242 discrete output interface module contains 16 discrete output channels
Powered by an external power source of the customer's choice.
peculiarity
The main features of the compact FBM242 module are:
?16 discrete outputs
? supports discrete output signals at voltage:
?15 to 60v DC
?120v ac/125v dc
?240v ac
? Each output is electrically isolated; clique
It is isolated when used with external incentives
? Compact, rugged design for housing
G3(Harsh) Environment
? Performs discrete I/O or ladder logic
Program, with the following configurable options:
Enter filter time, fail-safe configuration, fail-safe rollback , continuous or instant
exportation
? Various termination Assemblies (TAs)
Includes:
? Current limiting device
? Fusion
? Relay output with external power supply,
Fuse, power distribution
? Solid state output
? Redundant power distribution
